结构特点
Features
1.SCHNEIDER PLC编程控制系统
2. ? 320镀铬辊筒配内置油加温系统,温度更加均匀稳定,恒温性能优异。
3.气胀放膜,膜卷装卸方便,且放膜松紧度可根据需要随意调节。
4.分切系统,两种打孔装置方便用户针对不同规格纸张及薄膜选择使用。
5.改进的牵引辊调节系统使牵引力调节更加方便、有效。
6.瓦楞曲纸输出系统、振动收纸系统等配置收纸更加方便、整齐。
7.机器分体结构,方便保养维修。
1.SCHNEIDER PLC system makes the machine run stably and quietly.
2. ?320 size of chromed heating roller is mounted with built-in oil heating system which probalanced laminating temperature and owns excellent temperature persistence.
3.Pneumatic film unwinding system positions film roll more accurately , and makes the loading and unloading of film roll and film unwinding tension much more convenient .
4.Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
5.Perfected traction adjusting system makes traction adjustment more convenient and efficient.
6.Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.
技术参数

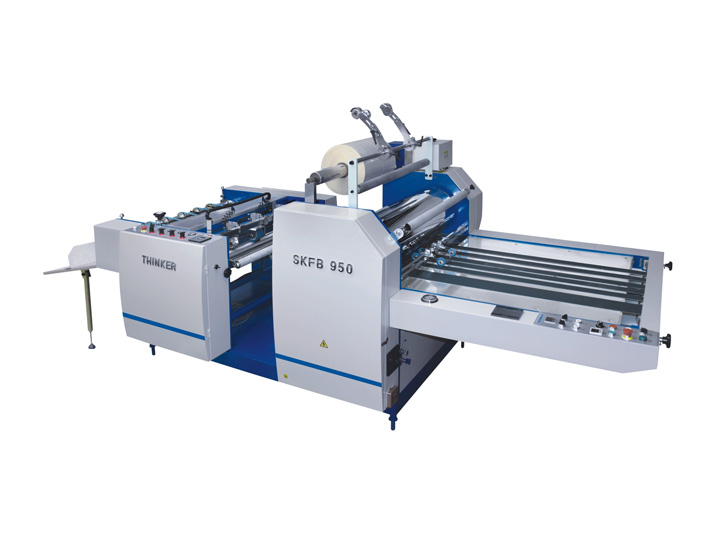

型号规格 Model Number |
SKBF-950 |
最大纸张宽度 Max paper Size |
920mm |
适用纸厚 Paper Thickness |
100-500g/㎡ |
覆膜速度 Laminating Speed |
0-30m/min |
总功率 Grosspower |
19kw |
机器重量 Weight |
1900kg |
外型尺寸 Overall Dimensions |
4600x1760x1500mm |
